MCRx20-QP "Quiet Power" Radiator Series
Price: Starting at $39.95
Product Options
| Size: |
|
| Version: |
|
|

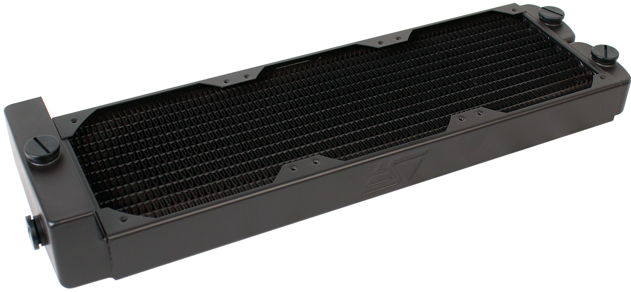

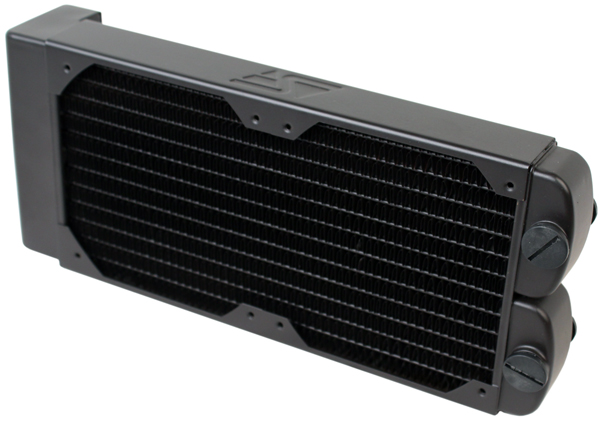

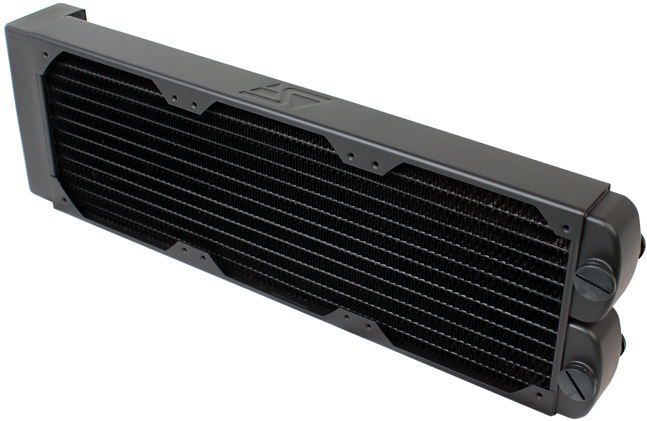

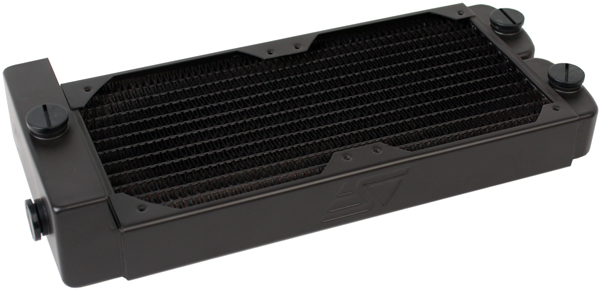

       MCR220-QP RES REV2 - FRONT MCR220-QP RES REV2 - BACK MCR320-QP Res Rev2 Front MCR320-QP RES REV2 BACK |
|
|
Product Description
|
Product News: 11-7-12 introducing Revision 2 of the MCRx20-QP radiator with built-in reservoir
|
|
|
Introduction

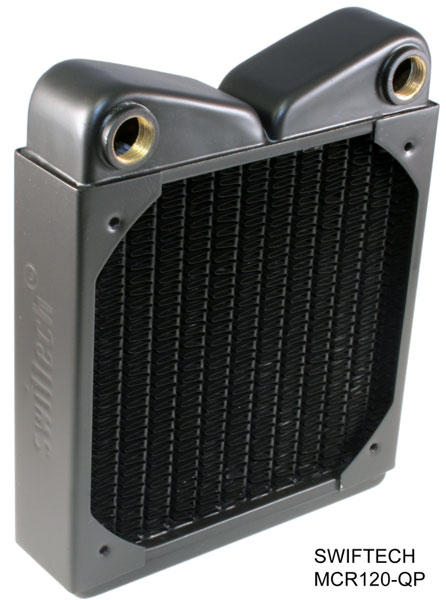

The MCRx20-QP (Quiet Power) series radiators are heavy-duty, low-noise optimized, liquid-to-air heat exchangers designed to be used with 120mm fans and specifically engineered for high-end liquid cooled Personal Computers.
First introduced in 2005, the Quiet Power technology is the result of months of research and development focused on optimizing thermal performance and audible noise characteristics with low to medium airflow types of fans. To this day, the MCRx20-QP radiators have set a standard for others to follow, and meet today's PC industry highest thermal loads, quality standards, and low noise requirements at competitive prices.
We recommend using a radiator the QP series in applications where the fans will run in the 1200 RPM range or below. For higher RPM ranges, we recommend selecting a radiator in the XP series.

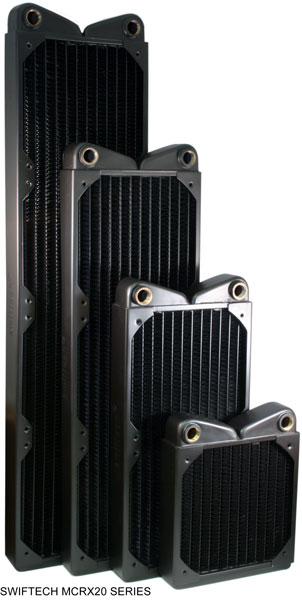

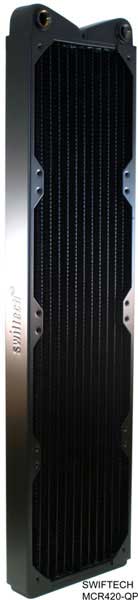

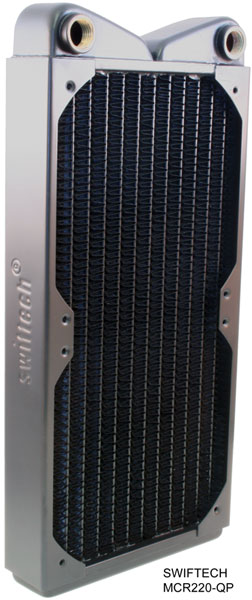

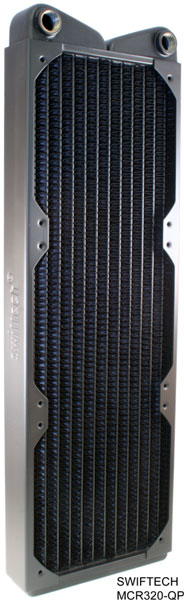

Two versions, with or without built-in reservoir, and four sizes are available: for single 120mm, dual 120mm, triple 120mm, and quad 120mm.
Tab 1
| Features
|
Benefits
|
| Thermal design is optimized for maximum heat dissipation with 120mm fans featuring very low to medium air output.
|
Excellent cooling at very low noise
|
| Slim form factor (34mm)
|
Reduces radiator intrusion on neighboring components, helps compatibility
|
| Self-purging plenums
|
Help eliminate accumulation of air in the radiator, and ennoying gurgling noises
|
| Industry standard fan spacing (15mm)
|
15mm fan spacing is adopted as a standard by most case manufacturers
|
| Brass tubes
|
No corrosion
|
| Copper fins
|
Better heat dissipation
|
| 1/4" BSPP (G1/4) threaded hubs with flat face
|
Compatible with industry standard G1/4 fittings with captive o-ring
|
| Quality assurance: all our radiators are ultrasonically cleaned to remove solder flux, and individually pressure-tested for leaks!
|
|

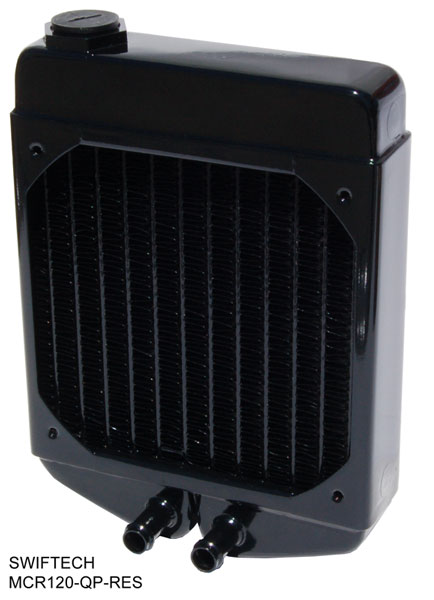

MCRx20-QP-RES SERIES:
Built-in reservoir option, an exclusive Swiftech® innovation
|
Eliminate the need for separate reservoir
|
| Improves reliability (less fittings means less potentially leaky joints)
|
| Improved hydraulic performance (less pressure drop), resulting in lower temps
|
| Space saving
|
| Cost saving
|
Tab 2
Tab 3
MCRx20-QP specifications
| 2-pass, single row construction
|
Hub specifications & fittings compatibility:
|
| Slim form factor (34mm)
|
|
Brass body and brass tubes
|
| Louvered copper fins
|
|
Optimized fin-density for maximum heat dissipation at low noise (12 fpi)
|
|
M3.5 threaded fan and case-mounting holes
|
|
High-durability acrylic paint:
|
|
ROHS compliant
|
| Quality assurance: all radiators are ultrasonically cleaned to remove solder flux as well as pressure-tested for leaks.
|
| Weight:
MCR120-QP 14.4oz (408g),
MCR220-QP 1lb 6oz (624g),
MCR320-QP 1lb 14oz (850g),
MCR420-QP 2lb 5oz (1048g)
|
Plenum Style:
-
MCRx20-QP (without integrated reservoir): Self-purging brass plenum chambers
-
MCRx20-QP RES: Upper plenum is a built-in reservoir and includes a fill-port. Lower plenums are self-purging brass plenum chambers and host the threaded hubs.
|
|
What is Included with each radiator:
-
M3,5 x 6mm screws (4 each per 120mm fan) - Alternatively you may use 6-32 x 1/4" (not included)
-
M3,5 x 30mm screws (4 each per 120mm fan) - Alternatively you may use 6-32 x 1 1/8" (not included)
-
Fill-cap (MCRx20-QP-RES series)
-
Installation Warning pamphlet
-
No fittings
|
|
MCRx20-QP SERIES DIMENSIONAL DRAWINGS
|
|
|
|
|
|
|
|
MCRx20-QP-RES SERIES DIMENSIONAL DRAWINGS
|
|
|
|
|
|
|
Tab 4Installation guidelines
The MCR220-QP and MCR220-QP-Res can be installed using Swiftech's MCB120 "Radbox".
Radiator possible orientations:
MCRx20-QP
MCRx20-QP-RES
-
Vertical (inlet/outlet at bottom): Yes (recommended installation)
-
Vertical (upside-down): Yes (reservoir functionality disabled)
-
On the side: Yes (reservoir functionality disabled)
-
Horizontal (either face): Yes (reservoir functionality disabled)
INSTALLATION PRECAUTIONS
The single most common cause for leaks is puncture of the radiators channels. This typically occurs when users attempt to either drive screws thru the radiator, or utilize screws that are too long. Users are advised that Swiftech® will decline warranty coverage for puncture of the radiator channels located directly behind the radiator mounting screw holes.
Make sure the screws you are using do not hit the water channels!
Depending on your configuration you might want to use your own screws either to attach the fan to the radiator, radiator to the chassis, or using a Radbox. You can use either 6-32 US thread or M3.5 metric thread. But always double-check the screw length before installation or you might poke a hole in the radiator water channels!
Tab 5No Content |
120x25mm Fan with PWM speed control, 9 blade design, optimized for liquid cooling, 55CFM Max, less than 33 dbA, 4 pin, Z bearing, 12v
|
120x25mm Fan - non-PWM, 9 blade design, optimized for liquid cooling, 55CFM Max, less than 33dbA, 3 pin, Z bearing, 12v
|
Price: Starting at $39.95
Hi Performance Medium speed fans Optimized, Slim form factor PC radiators, including mounting screws, fittings not included
|
Corner brace for side radiator installation
|
