Komodo R9-LE
Price: $159.95
Sale Price: $79.98
You Save: $79.97
Out of stock
Part Number: KOMODO-R9-LE
Bulk shipping information: 12 Pcs/Ctn
|
 Komodo R9-LE Komodo-R9 LE back plate Komodo-R9 LE Chrome base plate & fascia Komodo-R9 LE 4 colours |
|
|
Product Description
Product Description
The Komodo™R9-LE ( Luxury Edition) is a full cover waterblock compatible with AMD® Radeon 290 & 290X Graphics cards (AMD reference PCB design). The coolant flow path includes all critical components such as GPU, memory and power mosfets. Proper cooling of all the critical components contributes to overclocking stability and reliable operations. The block covers the entire PCB, leaving no components exposed to possible damages during handling. A brushed aluminum back plate is included with the product, and also cools the backside mosfets. The product includes interchangeable color strips to light up the coolant window and front logo plate in 4 colors: Green (as shipped), red, blue or clear.
Tab 1
| Why is the Komodo-R9 LE a superior cooling solution ?
|
| The only true full cover water-block
|
The blocks cover the full length of the card and utilizes all the original circuit board mounting points; this results in superior thermal interface with all the components, but more importantly it prevents bending and/or damage to the card compared to competing solutions that leave critical components exposed for cost saving purposes; the Komodo-R9 LE series continue this exclusive Swiftech® initiative as a true professional solution (an industry first).
|
| Moderate flow restriction by design
|
The water channels have been optimized for optimum flow rate in order to take into account multiple waterblocks in the same loop; additionally, the high efficiency of the thermal design authorizes better thermal performance at low flow rates.
|

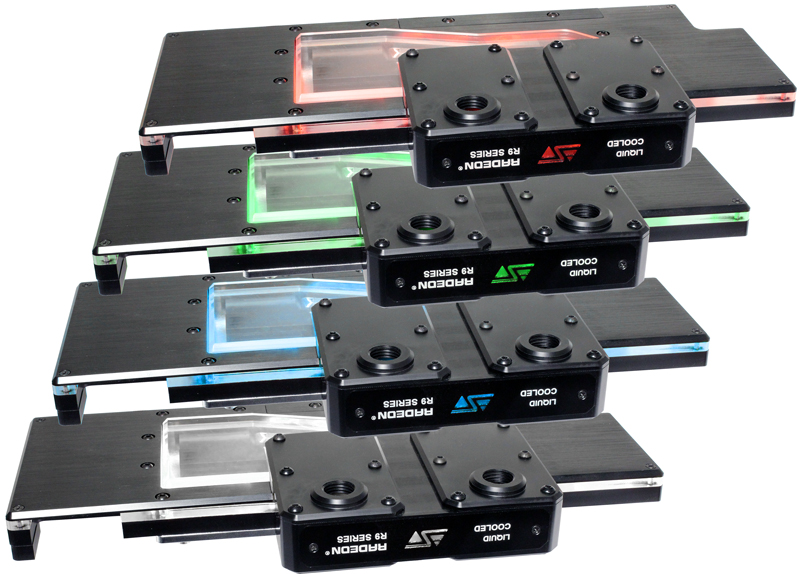

| Multi Color Illuminated coolant window and bridge logo
|

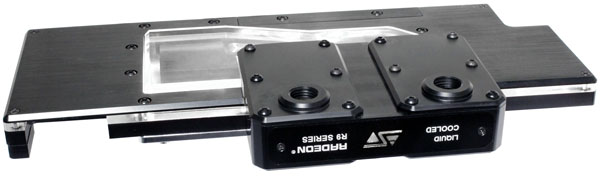

The product includes interchangeable color strips to light up the coolant window and front logo plate in 4 colors: Green (as shipped), red, blue or clear.
|
| High quality black anodized aluminum back-plate included
|
A high quality black-anodized brushed aluminum back-plate is included with the product, and it serves to cool the backside mosfets and to protect the fragile components at the back of the card during handling and/or installation.
|

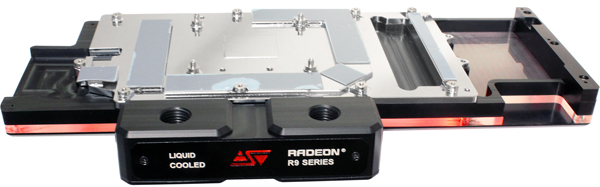

| True Chrome Plated copper base plate
|
Maintenance-free, corrosion-free, discoloration-free, and a brighter whiter color: the precision CNC machined copper base plate is plated with true chrome, as opposed to commonly used nickel plating (which is yellowish).
|
| Precision CNC machined housing
|
The housing is precision CNC machined out of durable black POM acetal.
|
| Pre-applied thermal pads
|
High conductivity thermal pads are applied to the memory and VRM areas; there is no need to waste time cutting thermal pads as is often the case with other blocks; high quality Tim-Mate™ 2 thermal grease is included with the water-block for application to the GPU area.
|
SLI support
|
Depending on your motherboard, up to four Komodo-NV LE Titan waterblocks can be interconnected using Lok-Seal™ adjustable connector fittings.
|
Tab 2
What is included in the box
|
| Water-block
|
| Color Strips
|
| Installation screws
|
| Pre-installed thermal pads
|
| Black-anodized brushed aluminum back-plate
|
| Tim Mate 2 Thermal grease
|
| (2) G1/4 plugs
|
| Installation guide
|
| Technical Specifications
|
| Inlet & Outlet port thread standard:: 1/4" BSPP (G1/4)
|
| Quality assurance: leak tested at 30 PSI
|
Thermal joints installation:
- GPU: thermal compound (included)
- Memory & power fets: pre-installed 0.5mm thermal pads
|
| Housing material: Black POM acetal
|
| Base Plate material: Chrome plated C110 copper
|
| Back-plate material: Black anodized brushed aluminum
|
| Dimensions: (L) 10.5" - 268mm x (W) 4.8" - 122mm x (H) .74" - 19mm (measured from GPU pedestal to top of housing)
|
| Mass: 44 oz - 1247 g
|
Tab 3

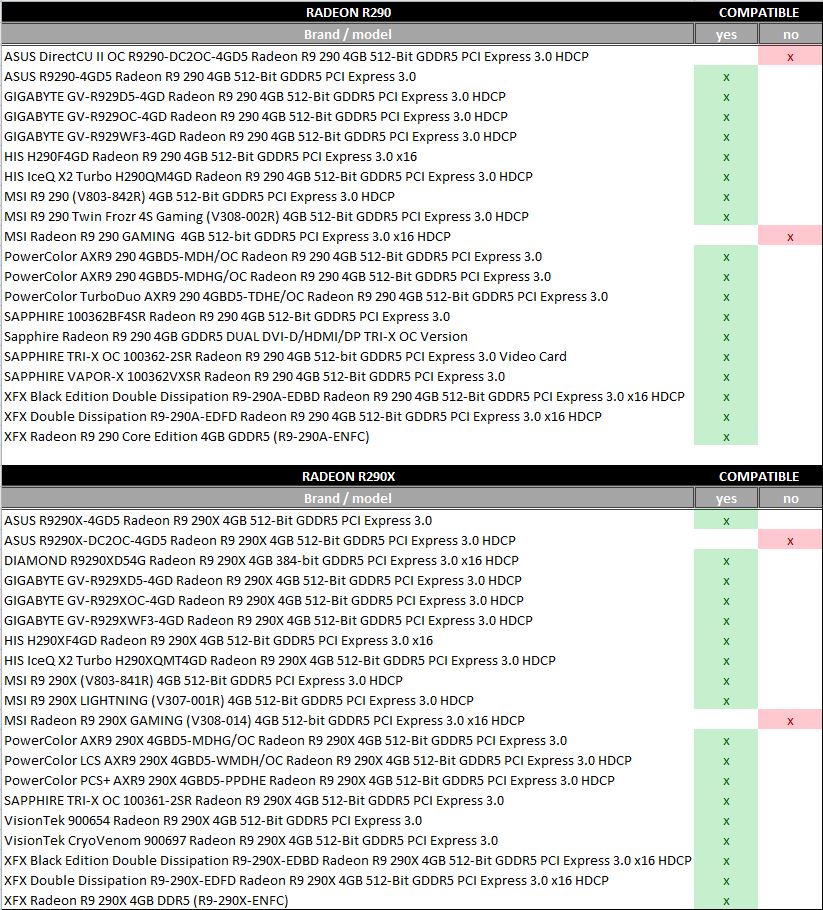

Compatibility
The Komodo-R9 LE is compatible with AMD® Radeon™ reference PCB designs (109-C67157-00-02). The PCB revision number represents the deciding factor to go by when selecting your Swiftech product,rather than the brand and/or model number of the card. AMD® reference design boards usually bear the AMD® logo, with the PCB number positioned directly below it. Please carefully inspect your card to locate the PCB revision number.
Installation Guides (PDF)
|
VGA PWM 15 3/4" (40cm) extension cable
|
Lok-Seal™ G¼ Male-Male connector fittings for multiple VGA waterblocks in SLI or CrossfireX, adjustable from 41 to 65mm
|
For ⅜” (10mm) ID x ½” (13mm) OD tubing
|
For ⅜” (10mm) ID x ⅝” (16mm) OD tubing
|
